Getting Started with Custom Actions

ℹ️

Custom actions require a Builder plan or higher.

Upgrade to Builder →

Create Your First Action

1. Open Custom Actions

Navigate to build.chipp.ai → Your App → Brain → Integrations → Custom APIs card → Add API

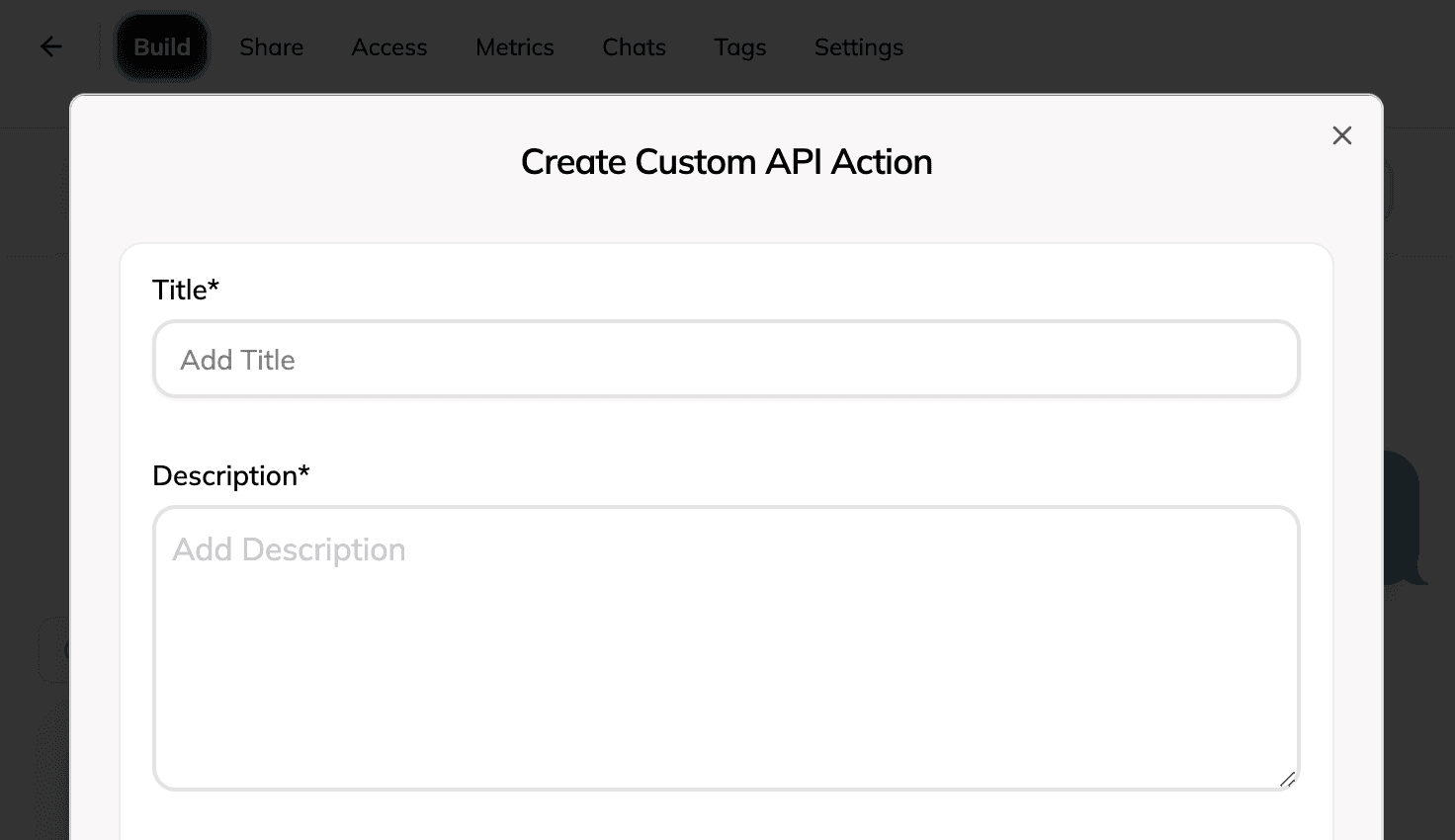

2. Basic Configuration

Fill in the basic fields:

Title: Search Users
Description: Search for users in the database by name or email
Method: GET
URL: https://api.example.com/users

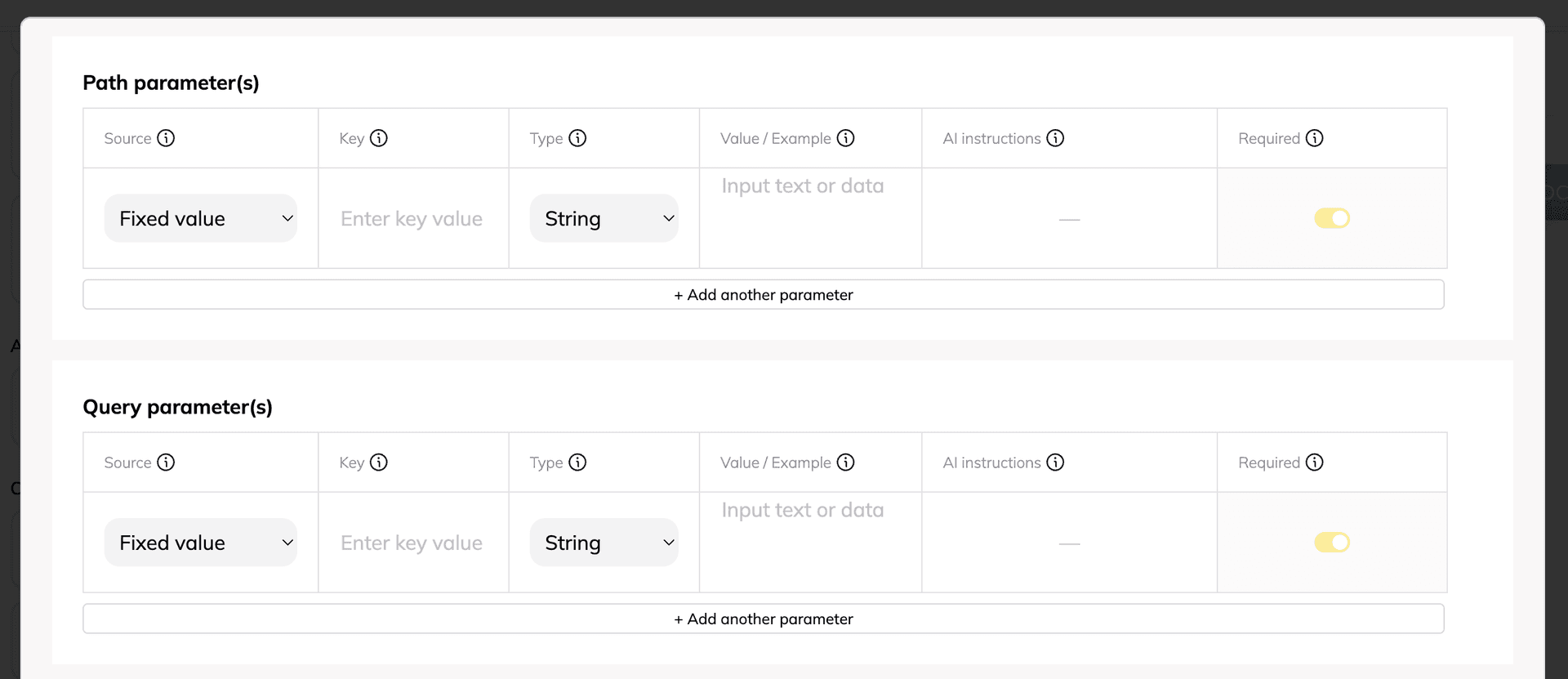

3. Add Parameters

Open the Parameters tab and click Add next to Query Parameters:

Key: query
Source: AI fills it in
Instructions: Search term based on user's request, such as a name or email address
Type: Text, Required: on
Sample value (optional): jane@example.com, so the AI sees the format and Test Request has a value to send

4. Test Your Action

Expand Test Request to verify your configuration:

5. Save and Use

Click Create Action to save. Your AI can now search users when asked.

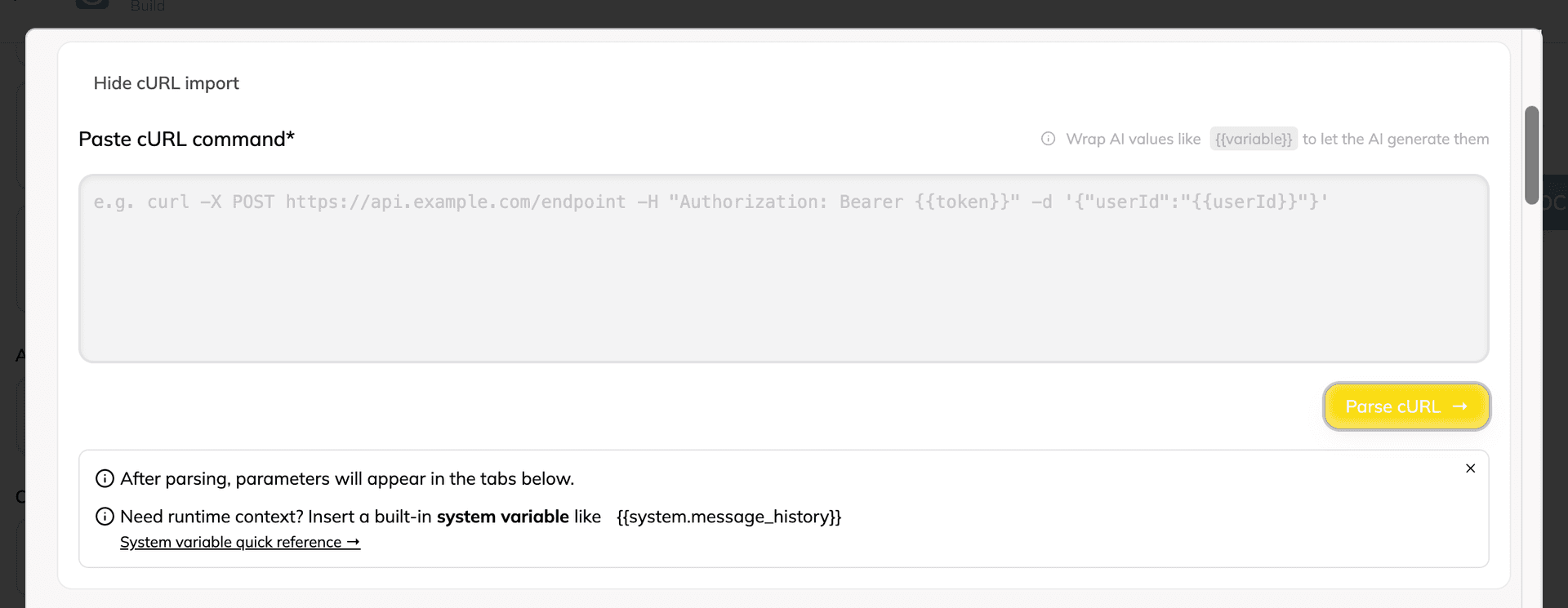

Import from cURL

Quickly create actions by importing cURL commands:

1. Paste cURL Command

For example:

bash

curl -X POST https://api.example.com/messages \
  -H "Authorization: Bearer {{var.API_KEY}}" \
  -H "Content-Type: application/json" \
  -d '{
    "to": "{{email}}",
    "subject": "{{subject}}",
    "body": "{{message}}"
  }'

2. Parse and Configure

Expand Import from cURL, paste the command, and click Import to auto-populate:

Method: POST
Headers: Authorization, Content-Type
Body parameters with AI placeholders

3. Configure Placeholders

The importer sets each parameter’s source from its value:

Value in the cURL	Imported as
`{{email}}`	AI fills it in
`{{var.API_KEY}}`	Application variable `API_KEY`
`{{system.user_id}}`	System variable (only names Chipp supports)
A `messages` array of `role` / `content` objects	One AI fills it in parameter of type List
Anything else	Fixed value

A {{system.NAME}} that is not a real system variable is kept as typed, so the action reports “Unknown system variable” instead of quietly sending an empty value. For each AI-filled parameter, write instructions that tell the AI what value to provide.

Using Variables

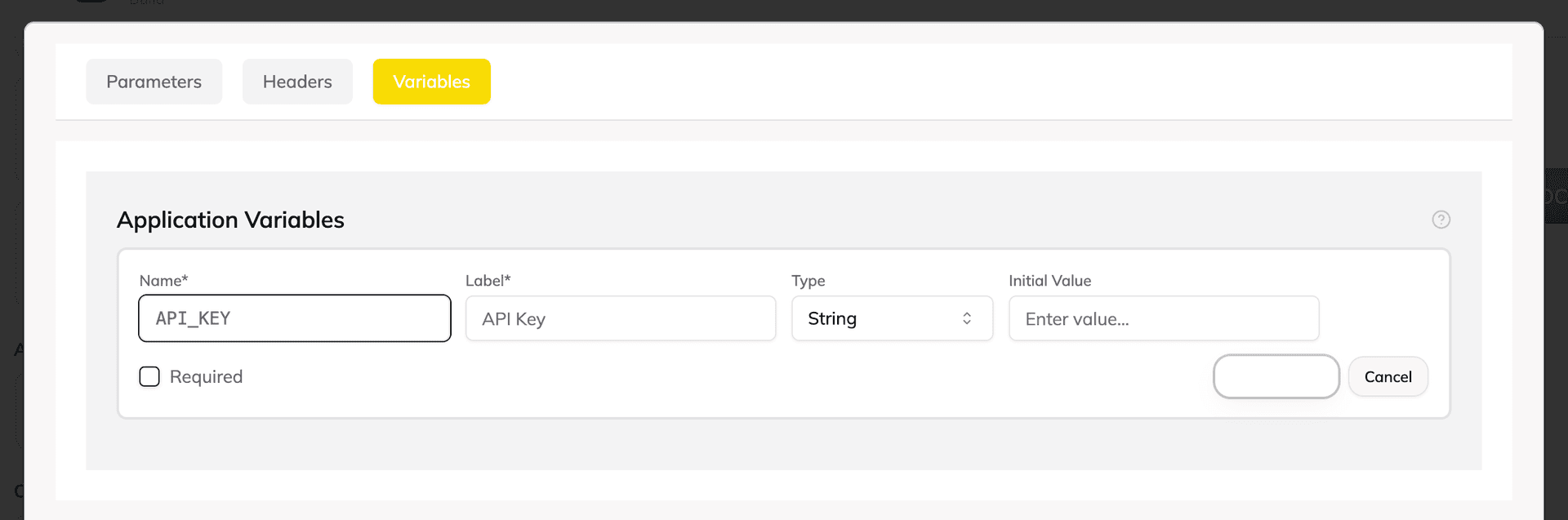

Application Variables

Define reusable values in the Variables tab:

Define once in Variables tab:

API_KEY = sk-abc123...
BASE_URL = https://api.example.com

Use in any action:

URL: {{var.BASE_URL}}/users
Header: Authorization: Bearer {{var.API_KEY}}

System Variables

System variables provide runtime context about the current user and conversation. They’re automatically available in all actions:

{{system.user_id}}

Returns the unique ID of the current user
Format: String identifier
Use case: Track actions by user, personalize responses
Example: "user_abc123"

{{system.timestamp}}

Returns the current time
Format: ISO 8601 string
Use case: Log when actions occur, time-based operations
Example: "2026-04-19T18:40:52.000Z"

{{system.session_id}}

Returns the ID of the current chat session
Format: UUID string
Use case: Link records in your system back to a conversation

Example usage in the cURL importer:

bash

curl -X POST https://api.example.com/analyze \
  -H "Content-Type: application/json" \
  -H "X-User-ID: {{system.user_id}}" \
  -d '{
    "timestamp": "{{system.timestamp}}",
    "session_id": "{{system.session_id}}"
  }'

See Variables and Secrets for the full list of system variables.

Action Dependencies

Action dependencies let you build multi-step workflows where one action’s output becomes another action’s input.

How it works:

User asks: “What are my recent orders?”
The AI calls “Get Current User”, and Chipp stores the result.
The AI calls “Get User Orders”. Chipp fills its chained parameter from the stored result.
The AI responds with the final result.

If the AI calls the second action first, the call stops and the AI is told to run “Get Current User” first, then try again.

Example: Two-Step User Lookup

Step 1 - Get User ID:

Name: Get Current User
URL: https://api.example.com/me
Returns: {"data": {"id": "user_123", "name": "John"}}

Step 2 - Get User Orders:

Name: Get User Orders
URL: https://api.example.com/users/{{userId}}/orders
Path parameter userId:
- Source: Output from another action
- Action: Get Current User
- JSONPath: $.data.id (extracts user_123 from Step 1)

Save Step 1 before you configure Step 2: the action list only shows saved actions.

Result: When the user asks about their orders, the AI:

Calls Get Current User and receives user_123
Calls Get User Orders with user_123 and receives the order list
Responds: “You have 3 recent orders…”

JSONPath examples:

$.id - Top-level field
$.data.user.id - Nested field
$.items[0].name - First array item
$.teams[*].id - All team IDs, as a list

See Output from Another Action for the full JSONPath syntax.

Status Labels

Under Description, two optional fields hold a present and a past tense label for the action:

While running: “Searching customer database”
When done: “Searched customer database”

Chipp saves these labels with the action. The chat does not show them yet: while an action runs, the chat shows “Running” and the action name.
